Anders Stengaard Sørensen

JTAG programmer

The JTAG programmer presented here is compatible to the parallel port JTAG programmers from Xilinx and INSIGHT/MEMEC, that we use in all FPGA and CPLD courses at Udense University College of Engineering. This JTAG programmer will thus enable you to program all Xilinx CPLD's and FPGA's, using the development software from Xilinx.

The Hardware for the JTAG programmer is available, but I have not yet been able to complete a users guide.

It is rather easy to assemble the JTAG interface using the PCB documentation, so if you have a little experience with electronics, you should be able to benefit from the JTAG programme without the users guide.

In order to get a JTAG programmer, please contact Anders Stangaard Sørensen.

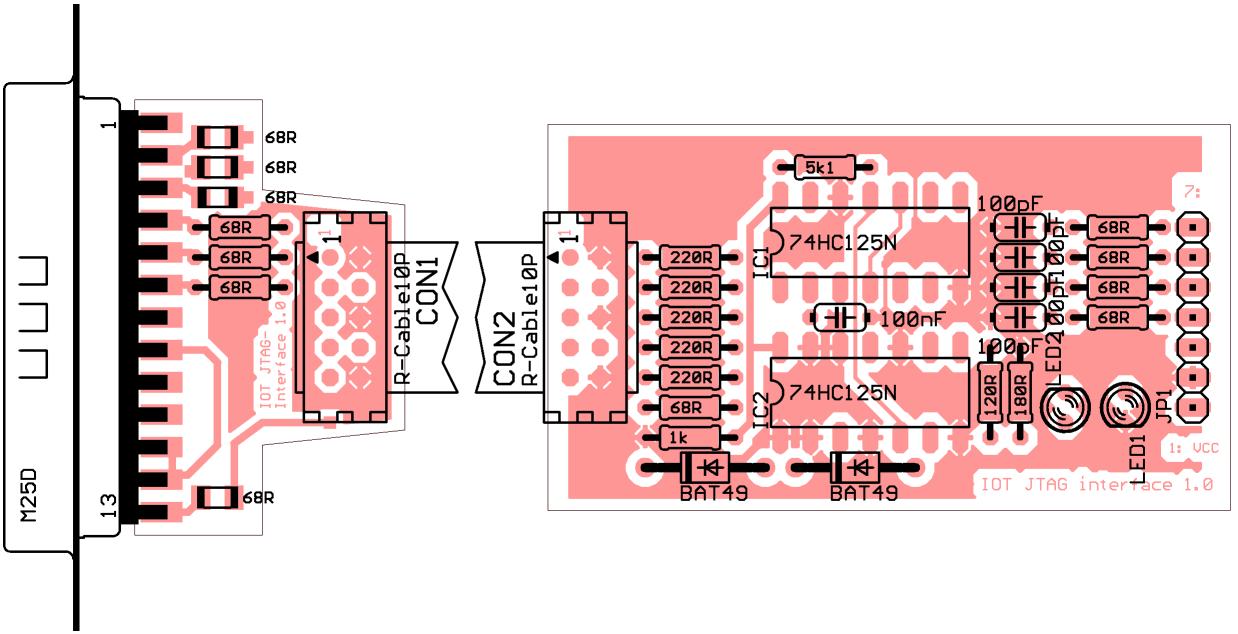

Please find the design files below
